VISCO JET® VJ405

Very effective on the production line

Powerful stirring when producing colour shades for facade paints and plaster

You can achieve maximum efficiency and flexibility in the production of individual colour shades in small containers with the VISCO JET®  VJ405!

Developed for professional use in continuous operation and in combination with a roller track, this innovative device is perfect for mixing and producing colour shades for facade paints and plaster in round and oval containers. Different design options offer you maximum flexibility and safety.

Invest in the future of your business and increase your productivity with the VISCO JET® VJ405!

VJ405 Highlights

Ideal

VISCO JET® PYRAMIDE for optimum agitating results for tinting and stirring

Fully on line

Easy integration into automated line production

Safe

Maximum safety and ease of use

The multi-function tool
for increased productivity

Strong

Optimised performance with 2.2 kW drive

r

Practical

Ideal for agitating or producing colour shades in facade paints and plaster in round and oval containers, approx. 5 – 50 litres

Efficient

VISCO JET® PYRAMIDE impeller for effective agitating of colours and tints up to 30,000 mPas

Container clamping

Secure container fixing via manual or pneumatic clamping system

Short set-up times

Quick-release coupling for easy and uncomplicated changing of the agitator units for different containers and stirring tasks without requiring long set-up times

Continuous operation

Specially designed for professional use in continuous operation in combination with an automatic roller track

Drip catcher

The integrated drip tray system prevents soiling of the container support or roller track

Safe

Complete enclosure including working and maintenance access made of aluminium and stainless steel meets the highest safety requirements

c

Digital control

Digital control unit and programming of agitating processes via an integrated touch screen or connection to a master control system

Well thought-out, right down to the smallest detail

Simple operation for optimal integration into your production process

  • The container is fed into the agitator via a roller track
  • Container reaches the mixing position
  • Fixing of the container via manual or optional pneumatic and automated container clamping
  • The drip tray swivels to the side
  • Selection of the agitating programme via touch screen or master control
  • Agitating process is started
  • Agitated process is finished
  • Container is released, drip tray swivels back
  • Drive power 2.2 kW
  • Power: 400 V incl. high-voltage power supply
  • Lift height adjustment: Electric
  • Lift height: 500 mm
  • Dimensions 2,341 x 906 x 1,030 mm
  • Working and end position switches
  • Door with safety switch
  • Container clamping
  • Safety enclosure with maintenance access and viewing window
  • Stand material: Aluminium and stainless steel profile construction
  • Agitator unit: Stainless steel 1.4404/1.4571
  • Stainless steel safety enclosure
  • Aluminium housing profile
  • Recipe management with 10 programs incl. setting the agitatinig time and speed and the agitating position

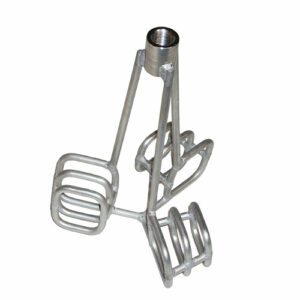

VISCO JET® PYRAMIDE

After a very short time, optimum colour shades and viscosity of the mixed medium are produced during the agitating process using VISCO JET® PYRAMIDE agitator specially developed for this application.
The agitator unit is also equipped with quick-release coupling.

  • 2006/42/EU: Machine safety
  • 2014/30/EU: Electromagnetic compatibility
  • 2014/35/EU: Electrical equipment designed for use within certain voltage limits
  • Additional agitator units
  • Position measurement system for individual height adjustment of the stirring position
  • Integration with the customer’s master control system
  • Pneumatic container clamp
  • Lateral tamper protection
  • Roller track
